The FFA-2004 has 4 channels with output up to 1000 W connected to a 2 Ohm load. It has the same thermal capacity and power supply components as used in the higher power models in the range the FFA-4004 and FFA-6004. This gives the FFA-2004 very high thermal capacity and increased reliability so is ideal for installation in very demanding installations. Audio performance is excellent and the punchy sound gives the impression of more power than specified.
Click on image to see enlarged view of detail
Small full range loudspeaker for example 5”-10” + 1” driver compliment, smaller bass units 8” -10” drivers.
Public address systems of any kind – peripheral systems in larger installations. AV systems.
High power mid range and HF drivers in multi way installed sound or touring sound systems.
Smaller stage monitors bi amp or full range
|
Power Ratings |
FFA - 2004 - 4 x 250W 8 Ohm load, 4 x 500W 4 Ohm load 4 x 1000W 2 Ohm load |
| Gain | 32 dB |
| THD | THD Typical 0.03 4 Ohm 1kHz THD+N |
|
Frequency Response |
20Hz - 20kHz +- 0.5dB |
| Controls | 40 Point Potentiometer per channel, power on switch |
| Indicators | signal green = -20dB, signal yellow = -3dB, red signal = clip, signal red protect = over current, low AC mains or 3 sec. mute on power up |
|
Load Protection |
DC on output, side chain TCA clip limiter circuit |
|
Amplifier Protection |
Short circuit, current overload, thermal shutdown, high frequency stability circuit |
|
Audio Signal Inputs |

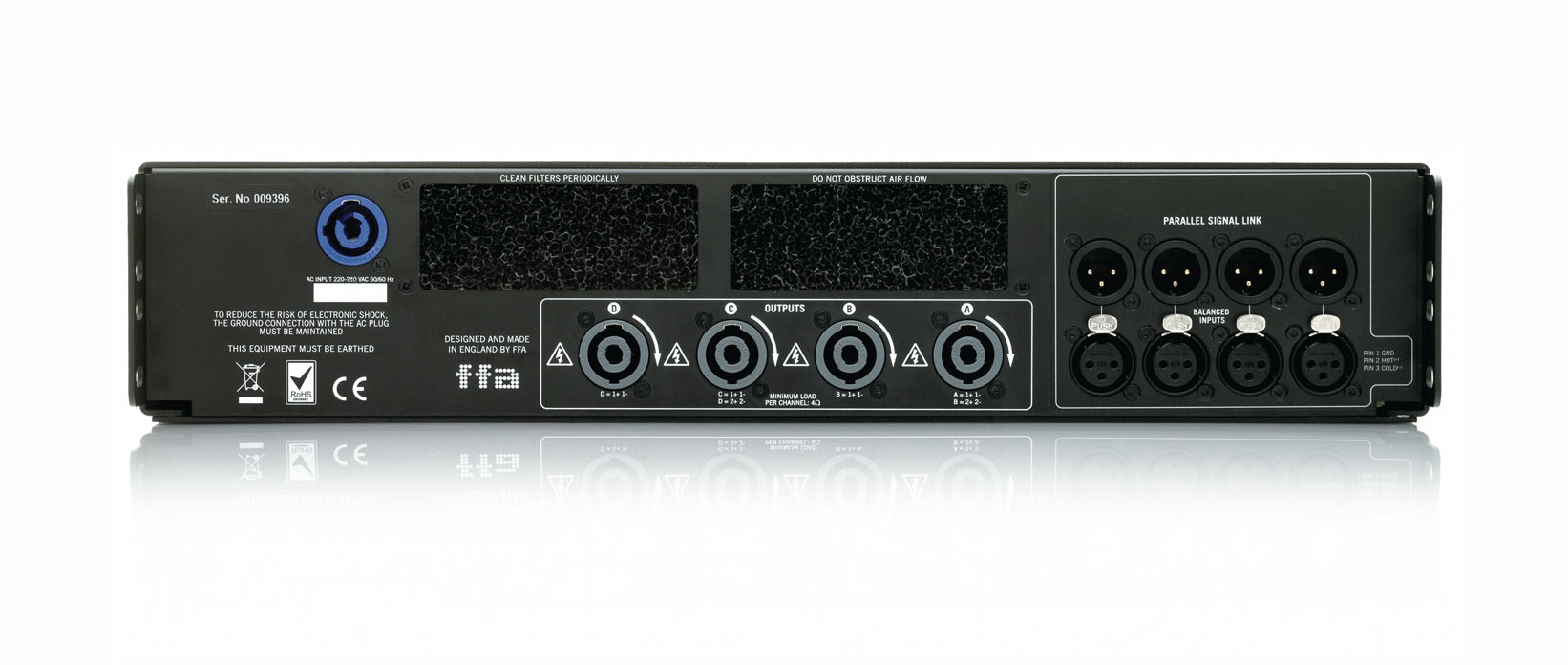

Balanced Neutrik® Female XLR input connected Pin 1 - GND, Pin 2 - Hot +, Pin 3 - Cold - . XLR Male signal throughput each channel |
|
Audio Signal Outputs |
Neutrik® speakON each channel. Channels 1 and 3 output speakON utilises 2+ and 2- connection to allow use of 4 core loudspeaker cable for bi amp loudspeaker system for example stage monitor system |
|
Power Requirement |
1 x Neutrik® 20A powerCON connector 1 x 16A 230 VAC Circuit. Power range 185V-230VAC 120V (configured at factory) |
|
System Cooling |
High CFM 80mm fan with proportional signal speed control. Rear to front airflow |
| Dimensions | 88mm Height x 483mm Width x 510mm Depth. Includes rear rack support. 19" rack mount enclosure |
| Weight | 9 kg |
