FFA-10000

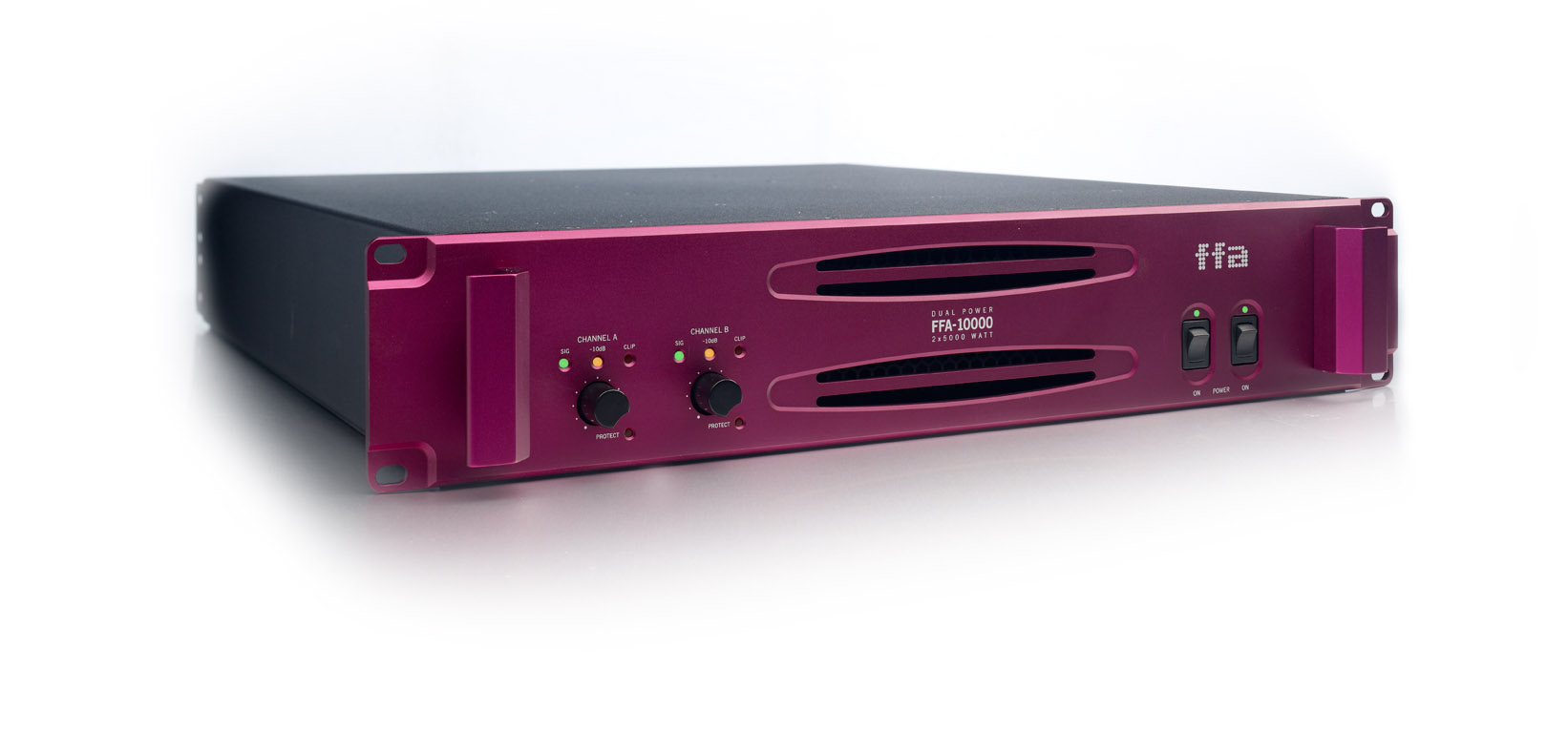

FFA-10000 Product Image

FFA dual power dual mono professional audio amplifiers

Ideally suited for driving very high output bass and sub bass loud speakers or high power full range systems. Designed to drive sustained, very high output audio into 2 Ohm loads.

Featuring FFA proprietry Class D PWM amplifiers. These are partnered with FFA high current switch mode PSU technology. Massive bulk storage capacitance per channel ensures continuous high power deliver to the load. The FFA-10000 is dual mono - each channel is totally independent.  FFA dual mono power amplifiers are mains supply power efficient and operate cool even in the most demanding environments. Mechanical construction is tour grade with aluminium used throughout the chassis design. This provides a robust and rigid but lightweight housing for the electronic systems.

Click on image to see enlarged view of detail

FFA-10000 Product Image
FFA-10000 Product Image
FFA-10000 Product Image

Features at a glance

• 2 x 5000 Watts at 2 Ohms

  • FFA Class D PWM amplifiers

• Power supply soft start

• High thermal headroom

• Weight - 12kg

• Dual mono power amplifiers

• Clip limiter

• 5 year factory warranty

• Hand constructed and designed in England

• Switch mode power supply

• Power efficient

• 2 Ohm drive

• All aluminium construction

• Dual power supply

Suitable Applications

Very high power output amplifiers ideal for the most demanding bass and sub bass

reinforcement.

FFA-10000 Large 2x18” 21” 24” very high power bass systems – 2 ohm drive

Power

Ratings



FFA - 10000  -  8 Ohms 1500W, 4 Ohms 3000W, 2 Ohms 5000W



Gain 32 dB
THD Typical 0.05 4 Ohm 1kHz THD+N

Frequency

Response

20Hz - 20kHz
Controls

Power on rocker switch each channel. 40 point Potentiometer each channel

Indicators

Power ‘on’ green LED each channel, Signal present green LED, -3dB drive yellow LED, amplifier clip - red signal LED,  amplifier protect due to over temp/clip limiter activated and 3 second mute at power up = red LED

Cooling

 Rear to front airflow, high CFM fan

Load

Protection

DC on output, side chain TCA clip limiter circuit

Amplifier

Protection

Short circuit, current overload, thermal, reactive load stability

Audio

Inputs

Neutrik® female XLR with male XLR signal link through per channel

Audio

Outputs

Pair of Neutrik® NL4MP-UC speakON® connectors per channel. Each connector has all output poles live 1+, 1-, 2+, 2-. This allows the use of 4 core loudspeaker cable to minimise conductor losses between amplifier and loudspeaker

Power

Supply

2 x 20A Neutrik® powerCON® required – one each channel

Power

Requirement

185-230 VAC 50-60Hz, 2x16A max per amplifier

120V (configured at factory)

Power

Operational

Range

 +-10%

Dimensions

2RU 19” rack mount enclosure, H88mm x W483mm x D510mm. Depth includes integral rear rack support ears

Weight 12 kg
