Designed to give exceptional audio.
FFA-2004 G2 DSP amplifier's provide a cost effective solution for sound system design.Ideal for permanent installation or temporary sound.
The DSP software has been designed to be functional and quick to use and has a familiar feel to that of a mixing console.
The software runs on all platforms - PC or MAC/ IPAD based software.
The DSP is accessed by Neutrik Ethercon and connected using an Ethernet network direct to a personal computer (MAC/ IPAD or PC) or via an Ethernet Hub or wireless router.
The DSP has 4 analogue audio input’s or 1 pair of selectable AES/EBU digital inputs.
There are 6 analogue audio output channels - 4 assigned to the FFA-2004 power amplifier and 2 assigned to a pair of male XLR connection on the rear panel of the amplifier.
These extra processed outputs could be used to design a 3 way stereo system of bass, mid and high frequency where the 2 outputs drive a 2 channel bass amplifier or used as a 2 channel DSP for any signal that requires control.
The DSP features a broad band input compressor and 2 stage output signal limiter. The signal limiting allows precise system protection or contains environmental noise.
The DSP is fully password protected and has options to disable functionality. This gives the designer a tool to keep interference from unauthorised persons whom may change parameters which could either damage the loudspeaker system or exceed set environmental noise levels.

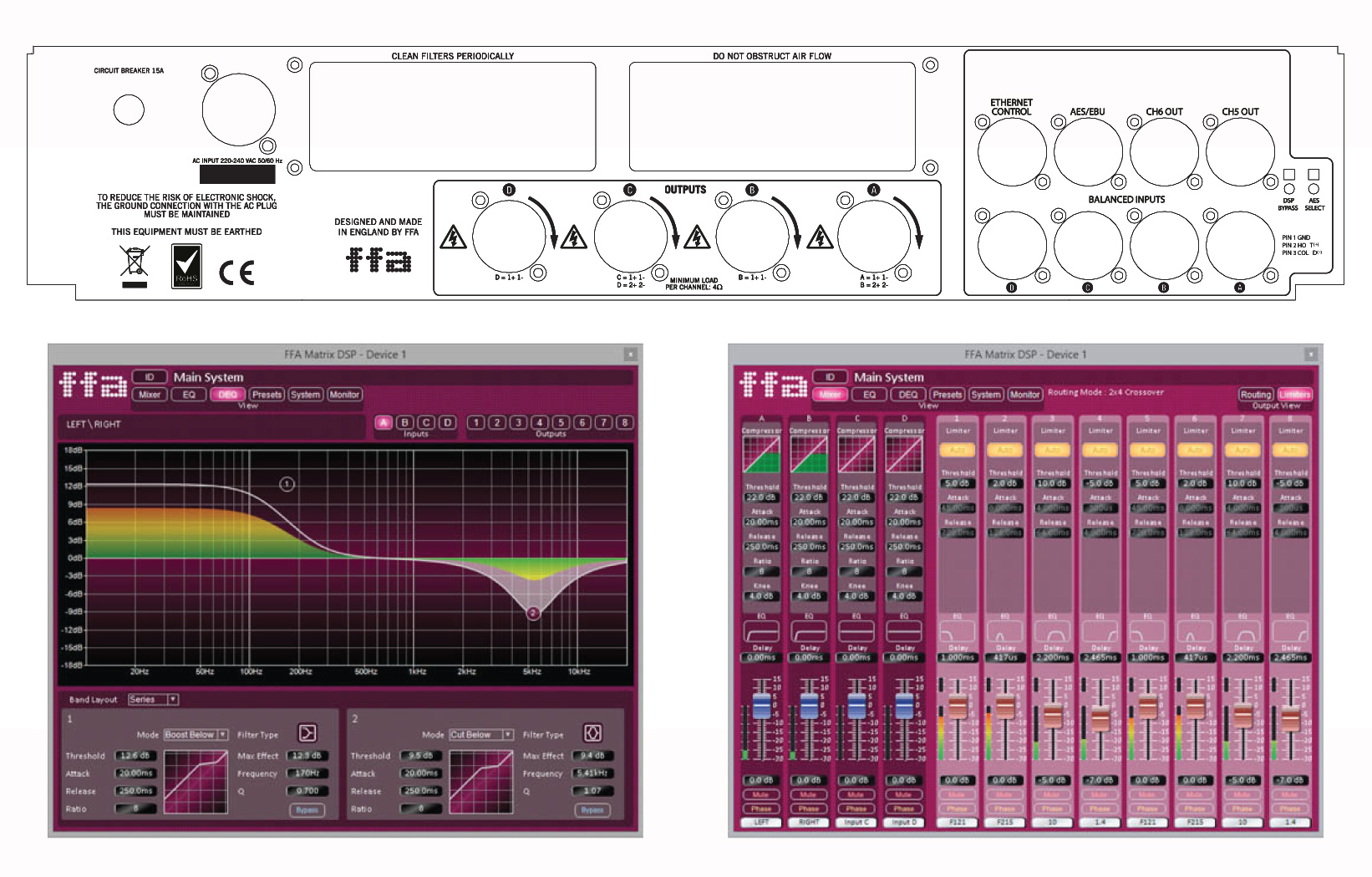

Click on image to see enlarged view of detail
Small full range loudspeaker for example 5”-10” + 1” driver compliment, smaller bass units 8” -10” drivers.
Public address systems of any kind – peripheral systems in larger installations. AV systems.
High power mid range and HF drivers in multi way installed sound or touring sound systems.
Smaller stage monitors bi amp or full range
|
Power Ratings |
FFA - 2004 G2 DSP - 4 x 250W 8 Ohm load, 4 x 500W 4 Ohm load 4 x 1000W 2 Ohm load |
| Gain | 32 dB |
| THD | THD Typical 0.03 4 Ohm 1kHz THD+N |
|
Frequency Response |
20Hz - 20kHz +- 0.5dB |
| Controls | 40 Point Potentiometer per channel, power on switch |
| Indicators | signal green = -20dB, signal yellow = -3dB, red signal = clip, signal red protect = over current, low AC mains or 3 sec. mute on power up |
|
Load Protection |
DC on output, side chain TCA clip limiter circuit |
|
Amplifier Protection |
Short circuit, current overload, thermal shutdown, high frequency stability circuit |
|
Audio Signal Inputs |
Balanced Neutrik® Female XLR input connected Pin 1 - GND, Pin 2 - Hot +, Pin 3 - Cold - . XLR Male signal throughput each channel |
|
Audio Signal Outputs |
Neutrik® speakON each channel. Channels 1 and 3 output speakON utilises 2+ and 2- connection to allow use of 4 core loudspeaker cable for bi amp loudspeaker system for example stage monitor system |
|
Power Requirement |
1 x Neutrik® 20A powerCON connector 1 x 16A 230 VAC Circuit. Power range 185V-230VAC 120V (configured at factory) |
|
System Cooling |
High CFM 80mm fan with proportional signal speed control. Rear to front airflow |
| Dimensions | 88mm Height x 483mm Width x 510mm Depth. Includes rear rack support. 19" rack mount enclosure |
| Weight | 9 kg |
