FFA-8004

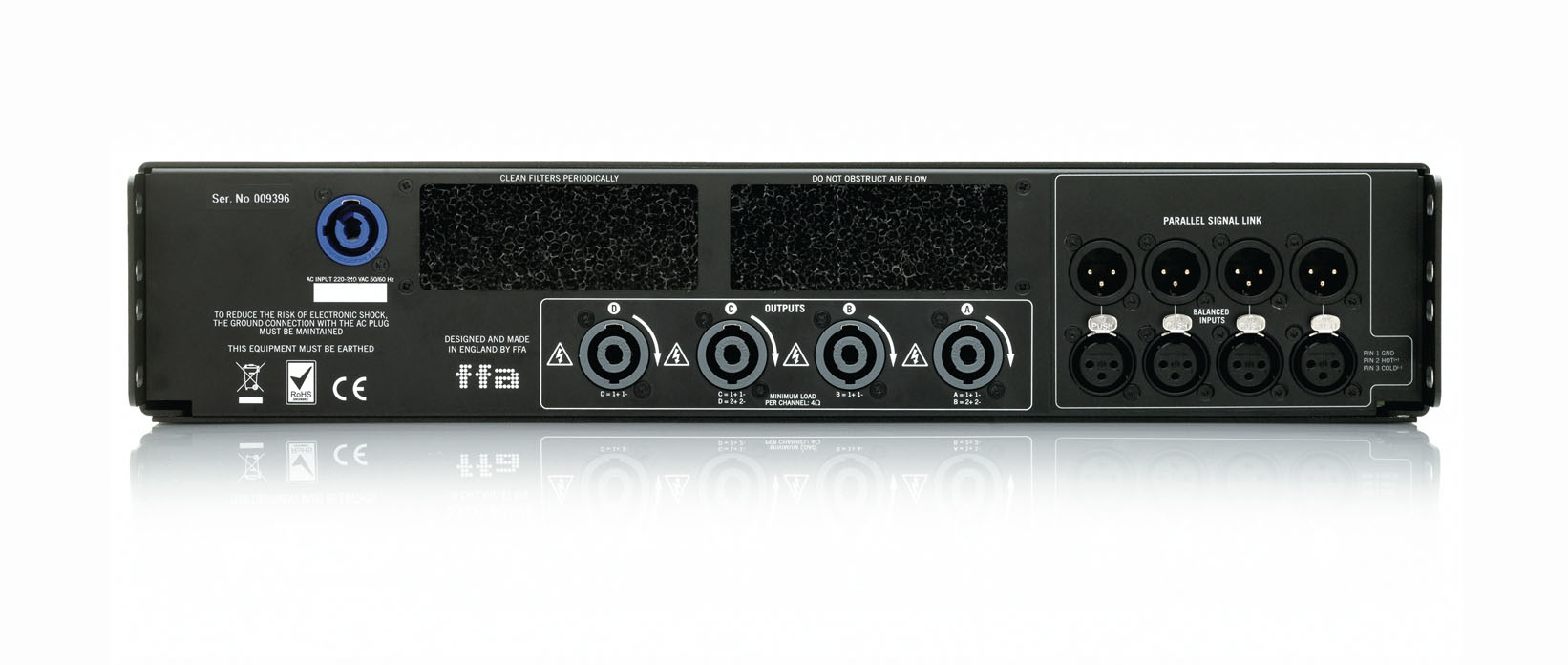

FFA-8004 Product Image

A completely new amplifier design from FFA . . . Designed to give exceptional audio for live performance sound

Click on image to see enlarged view of detail

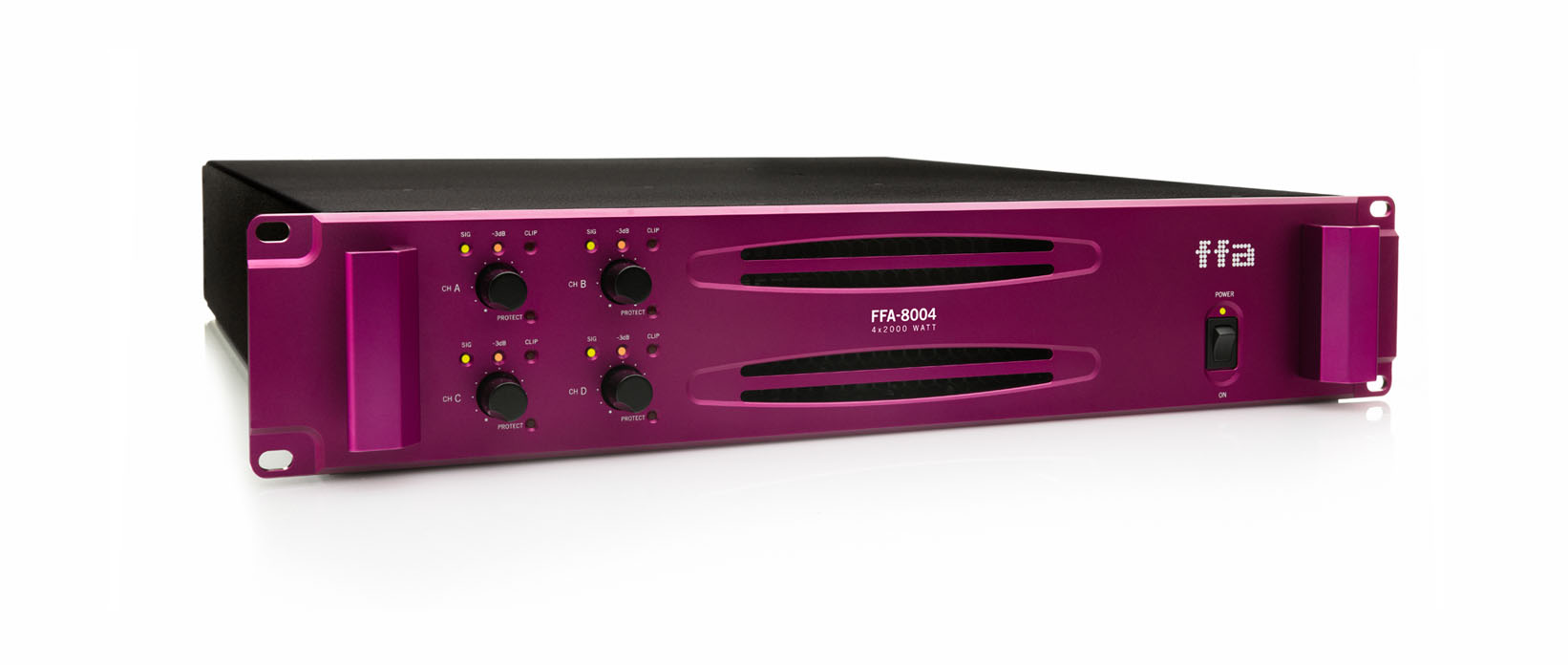

FFA-8004 Product Image

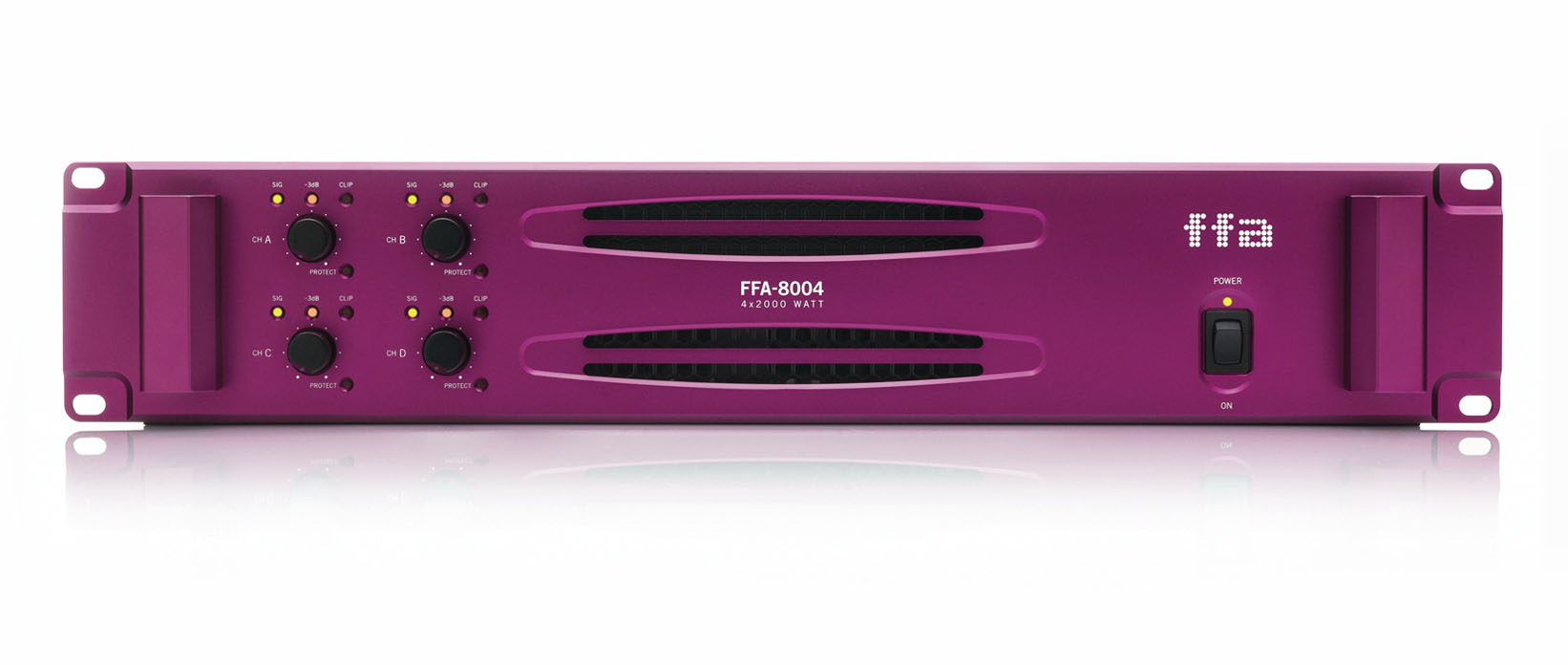

FFA-8004 Product Image
FFA-8004 Product Image

Features at a glance

  • Exceptional sound quality
  • G2 DSP option
  • High Power efficiency and cool running
  • Rugged Tour class Aluminium construction
  • Light weight - 10 kg
  • FFA Class D PWM
  • High current switch mode power supply designed to give continuous power
  • Superb limiter
  • 4 XLR analogue audio inputs
  • 4 XLR parallel outputs
  • Bi amp Neutrik® speakON outputs
  • Signal Link through
  • Neutrik® powerCON power input
  • PSU soft start
  • Hand built & designed in Hertfordshire, England
  • 5 year factory warranty

Suitable Applications

Exceptional sound for all loudspeaker systems – bass is powerful, fast and tight – mids and high frequency are natural and open.


Stage monitor performance will give super clear vocal sound.


Vocal and high frequency inteligibility for large scale systems is superb.


Ideal for any night venue, theatre, cruise ship, AV systems, Cinemas, Conferences

temporary audio installation at summer music festivals

Power

Ratings

FFA - 8004 - 4 x 2000W 8 Ohm, 4 x 1000W 4 Ohm

Gain 32 dB
THD Typical 0.05 4 Ohm 1kHz THD+N

Frequency

Response

20Hz - 20kHz +- 0.5dB
Controls 40 Point Potentiometer per channel, power on switch
Indicators signal green = -20dB, signal yellow = -3dB, red signal = clip, signal red protect = over current, low AC mains or 3 sec. mute on power up

Load

Protection

DC on output, side chain TCA clip limiter circuit

Amplifier

Protection

Short circuit, current overload, thermal shutdown, high frequency stability circuit

Audio Signal

Inputs

Balanced Neutrik® Female XLR input connected Pin 1 - GND, Pin 2 - Hot +, Pin 3 - Cold - . XLR Male signal throughput each channel

Audio Signal

Outputs

Neutrik® speakON each channel. Channels 1 and 3 output speakON utilises 2+ and 2- connection to allow use of 4 core loudspeaker cable for bi amp loudspeaker system for example stage monitor system

Power

Requirement

1 x Neutrik® 20A powerCON connector 1 x 16A 230 VAC Circuit. Power range 185V-230VAC

120V (configured at factory)

System

Cooling

High CFM 80mm fan with proportional signal speed control. Rear to front airflow
Dimensions 88mm Height x 483mm Width x 510mm Depth. Includes rear rack support. 19" rack mount enclosure
Weight 10 kg
